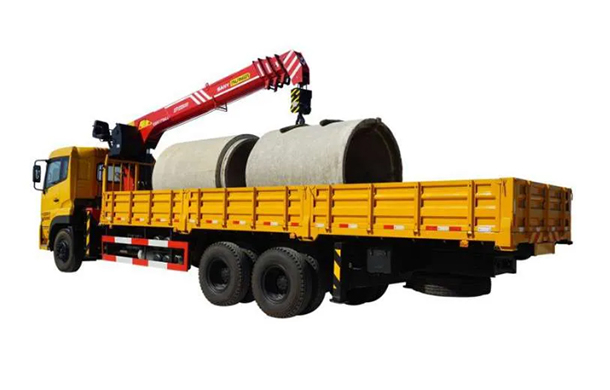

SPS25000 Stiff Boom Crane

10 Ton Stiff Boom Crane
Boom Length: 5.3-18.1m
Max. Lifting Capacity: 11T
Overall Weight: 4.13T

Suitable for working conditions: Transport & Logistics Infrastructure

Online Consulting
Product Features Technical Parameters Feedback

Product Features

Ergonomic Design
● Throughout the design phase SANY PALFINGER follows the general principles of ergonomics to ensure a comfortable and safe crane operation.

Integrated Electric System
● Robust, reliable, and easy-to-maintain design
● Network of modular components connected through standardized interfaces

Advanced Proportional Hydraulic System
● Sensitive controls with accurate positioning for lifting jobs requiring high precision. Stable movement and ability to utilize multiple functions simultaneously.

High Pressure and Return Filter
● All the series are equipped with high-pressure filter as standard configuration. It protects the hydraulic components of the crane and prolongs the service life of the hydraulic system

High Density Paint System
● Demonstrates superior performance
● Long-term UV-resistance
● Attractive aesthetics

Technical Parameters

Length of the Fully Extended Boom 18.1 m
Range of the Boom Lifting Angle 0~75°
Slewing Angle Endless
Length of the Basic Boom 5.3 m
Recommended Volume for the System 60-90 L/min
Operating Mode High seat or Lower seat
Outrigger Span 5.6 (m)
Max. Outreach 17.7m
Max. Lifting Height 20.1m
Rated Lifting Moment 25mt
Max. Lifting Capacity 11T
Overall Weight 4.13T
Boom Length 5.3-18.1m
Numbers of the Boom 4 or 5
Rated Lifting Weight 10T
