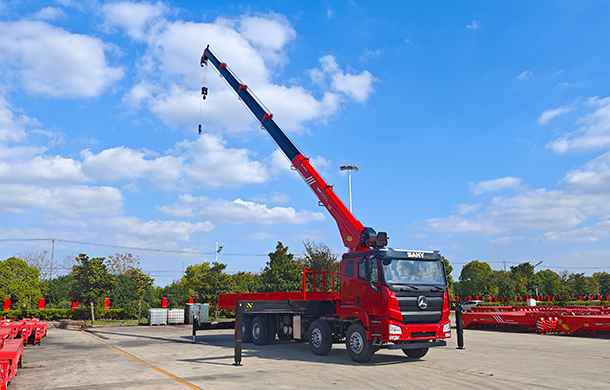

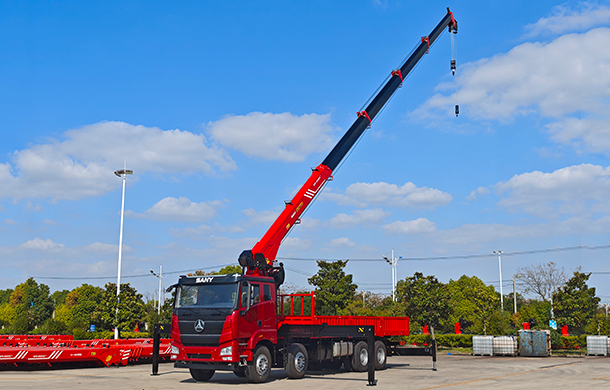

SPS40000Pro Stiff Boom Crane

Lifting moment:40mt/45mt
Max. Lifting Capacity:14,000kg/2.5m
Numbers of the boom: 5
Length of fully extended boom:22.9m

Suitable for working conditions: Transport & Logistics Construction

Online Consulting

Product Description Technical Parameters Feedback

Product Description

- SANY PALFINGER produces according to European Quality,Standardsto ensure reliability, performance and safety in the industry

- Extension system boom made of high tensile steel to optimize liftingheight and working range

- The wide outrigger span ensures stability in all mounting situations

- Automatic retracting hook up to 90 degrees hook in

- Overwinding stop makes operations safer and prevents damage to thecrane

- Standard package includes

- High pressure filter

- Ground level indicator

- Working light

- Over winding stop (OWS)

- Speed hydraulic winch

- Pressure gauge

- Duro Ladder

- Wide high Seat

- Oil cooler(installed on the crane, can be placed on the chassis)

Basic Data	SPS40000C-H^Pro-DC	SPS40000C-H^Pro-SC
Length of fully extended boom	22.9m	22.9m
Max. Lifting Capacity	16,000kg / 2.5m	16,000kg / 2.5m
Overall Weight:	6560kg	6490Kg
Rated Lifting Moment	40mt	40mt
Hydraulic outreach	22.55m (5 booms)	19.4m (5 booms)
Numbers of the boom	5	5
Boom length (Fully retract - Fully Extend)	6.6-22.9m	6.7-22.9m
Max. Lifting Height	24.5m	24.5m
Stabilizer spread	8400mm	8400mm
Recommended Flow	80-100L/min	80-100L/min
Recommended volume of the oil tank	300 Liter	300 Liter
Crane weight of standard model	6560kg	6490Kg
Basic Data	32MPa	32MPa
Length of fully extended boom	High seat	High seat
