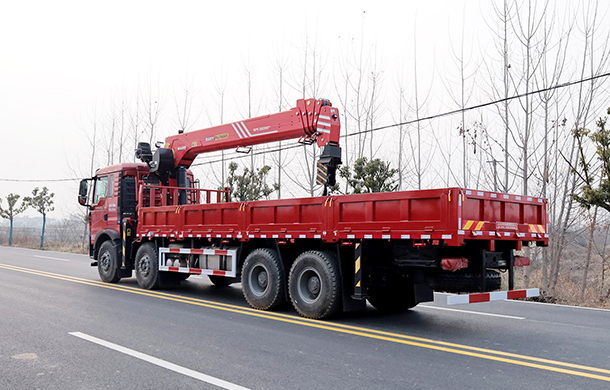

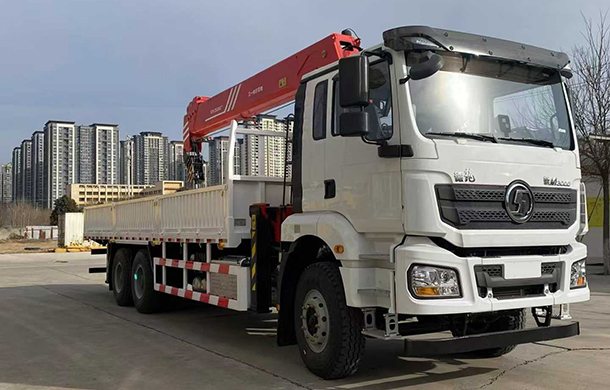

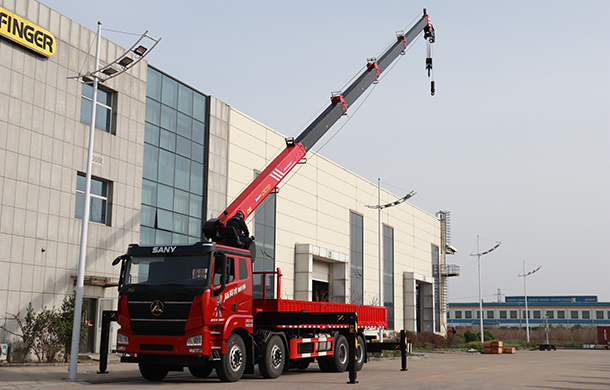

SPS35000Pro Stiff Boom Crane

Lifting moment:35mt
Max. Lifting Capacity:14,000kg/2.5m
Numbers of the boom: 4/5
Length of fully extended boom:17/19.8/19.75m

Suitable for working conditions: Transport & Logistics Construction

Online Consulting

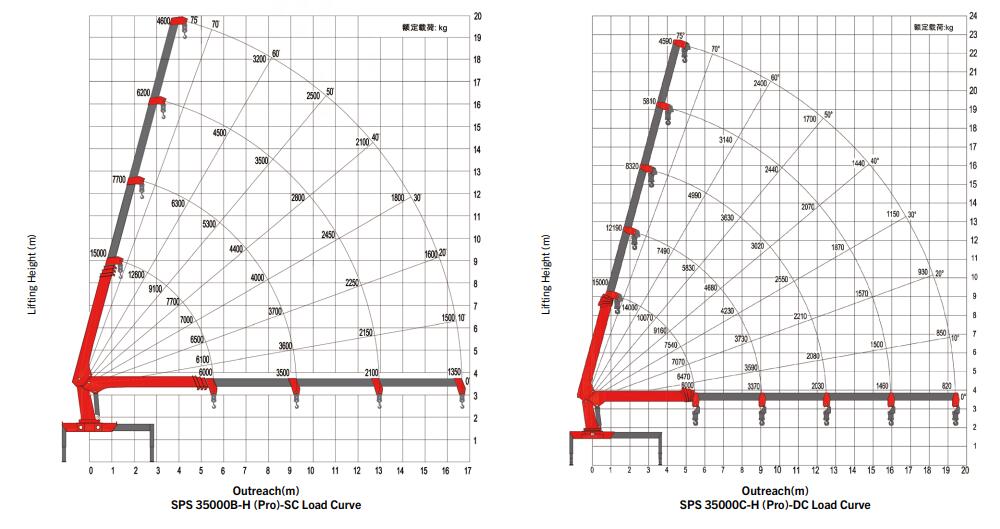

Product Description Technical Parameters Lifting Chart Feedback

Product Description

- SANY PALFINGER produces according to EuropeanQuality,Standards to ensure reliability, performanceand safety in the industry

- Extension system boom made of high tensile steel tooptimize lifting height and working range

- The wide outrigger span ensures stability in all moun-ting situations

- Automatic retracting hook up

- Overwinding stop makes operations safer and pre-vents damage to the crane

- Standard package includes

- High pressure filter

- Ground level indicator

- Working light

- Over winding stop (OWS)

- Single speed hydraulic winch

- Pressure gauge

- Duro Ladder

- Wide high Seat

- Maintenance free, galvanized winch cable

- Hydraulic outrigger

- Voltage 24V

- Emergency Shutoff Button

Basic Data	SPS35000B-H^Pro-SC	SPS35000C-H^Pro-DC	SPS35000C-H^Pro-SC
Length of fully extended boom	17m	19.8m	19.75m
Max. Lifting Capacity	14,000kg / 2.5m	14,000kg / 2.5m	14,000kg / 2.5m
Overall Weight:	4960kg	5950kg	5385kg
Rated Lifting Moment	35mt	35mt	35mt
Hydraulic outreach	16.6m (4 booms)	19.4m (5 booms)	19.4m (5 booms)
Numbers of the boom	4	5	5
Boom length (Fully retract - Fully Extend)	5.9-17.0m	5.9-19.8m	5.85-19.75m
Max. Lifting Height	18.8m	21.6m	21.6m
Stabilizer spread	7250mm	7250mm	7250mm
Recommended Flow	60-90L/min	60-90L/min	60-90L/min
Recommended volume of the oil tank	200 Liter	200 Liter	200 Liter
Crane weight of standard model	4960Kg	5950kg	5385Kg
Basic Data	32MPa	32MPa	32MPa
Length of fully extended boom	High seat	High seat	High seat
