SPS30000Pro Stiff Boom Crane

Lifting moment:30mt
Max. Lifting Capacity:12,000kg/2.5m
Numbers of the boom: 4/5
Length of fully extended boom:16.2/19.5/19.75m

Suitable for working conditions: Transport & Logistics Construction

Online Consulting
Product Description Technical Parameters Lifting Chart Feedback

Product Description

- SANY PALFINGER produces according to EuropeanQuality,Standards to ensure reliability, performanceand safety in the industry
- Extension system boom made of high tensile steel tooptimize lifting height and working range
- The wide outrigger span ensures stability in all moun-ting situations
- Automatic retracting hook up to 90 degrees hook in
- Overwinding stop makes operations safer and pre-vents damage to the crane
  - Standard package includes
  - High pressure filter
  - Ground level indicator
  - Working light
  - Over winding stop (OWS)
  - Single speed hydraulic winch
  - Pressure gauge
  - Duro Ladder

Technical Parameters

Basic Data SPS30000B-HPro-SC SPS30000C-HPro-DC SPS30000C-HPro-SC
Length of fully extended boom 16.2m 19.5m 19.75m
Max. Lifting Capacity 12,000kg / 2.5m 12,000kg / 2.5m 12,000kg / 2.5m
Overall Weight: 4300Kg 5600kg 5220kg
Rated Lifting Moment 30mt 30mt 30mt
Hydraulic outreach 15.9m (4 booms) 19.2m (5 booms) 19.4m (5 booms)
Numbers of the boom 4 5 5
Boom length (Fully retract - Fully Extend) 5.75-16.2m 5.6-19.5m 5.85-19.75m
Max. Lifting Height 18.2m 21.3m 21.6m
Stabilizer spread 6,000mm 7250mm 7250mm
Recommended Flow 60-90L/min 60-90L/min 60-90L/min
Recommended volume of the oil tank 200 Liter 200 Liter 200 Liter
Crane weight of standard model 4300Kg 5600kg 5220kg
Basic Data 29MPa 29MPa 32MPa
Length of fully extended boom High seat High seat High seat

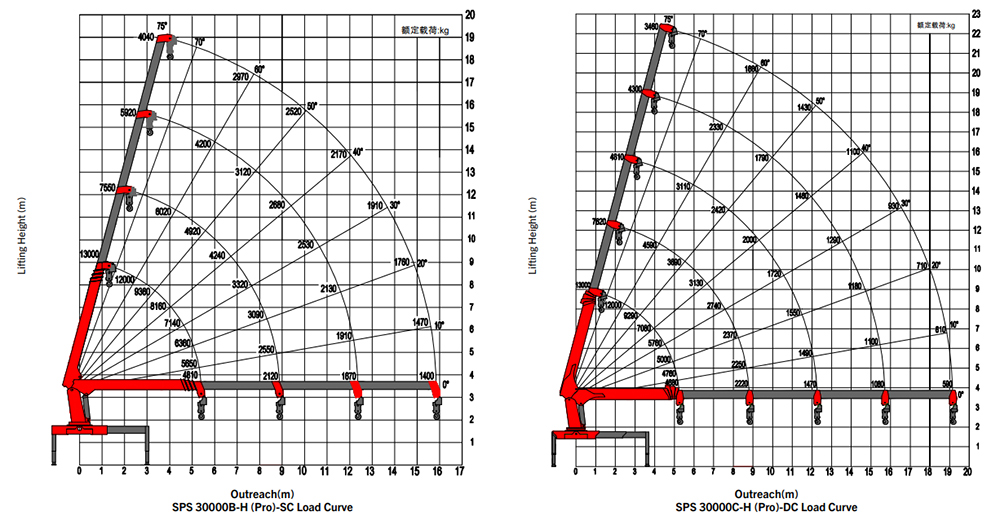

Lifting Chart
