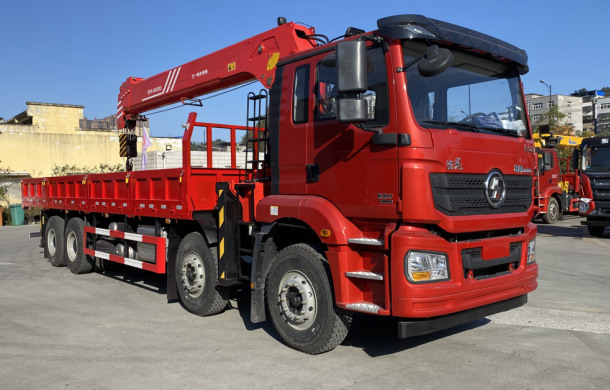

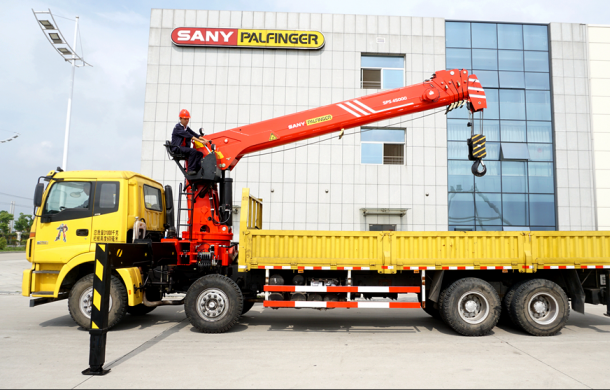

SPS45000 Stiff Boom Crane

18 Ton Stiff Boom Crane
Boom Length: 6.05-18.95m
Max. Lifting Capacity: 18T
Overall Weight: 6.02T

Suitable for working conditions: Transport & Logistics Construction

Online Consulting
Product Features Technical Parameters Feedback

Product Features

Ergonomic Design
● Throughout the design phase SANY PALFINGER follows the general principles of ergonomics to ensure a comfortable and safe crane operation.

Integrated Electric System
● Robust, reliable, and easy-to-maintain design
● Network of modular components connected through standardized interfaces

Advanced Proportional Hydraulic System
● Sensitive controls with accurate positioning for lifting jobs requiring high precision. Stable movement and ability to utilize multiple functions simultaneously.

High Pressure and Return Filter
● All the series are equipped with high-pressure filter as standard configuration. It protects the hydraulic components of the crane and prolongs the service life of the hydraulic system

High Density Paint System
● Demonstrates superior performance
● Long-term UV-resistance
● Attractive aesthetics

Technical Parameters

Length of the Fully Extended Boom 19 m
Range of the Boom Lifting Angle 0~75°
Slewing Angle Endless
Length of the Basic Boom  6.05m
Recommended Volume for the System 80-100 L/min
Operating Mode High seat
Outrigger Span 7.25 (m)
Max. Outreach 18.6m
Max. Lifting Height 20.7m
Rated Lifting Moment 45mt
Max. Lifting Capacity 18T
Overall Weight 6.02T
Boom Length 6.05-18.95m
Numbers of the Boom 5
Rated Lifting Weight 18T
