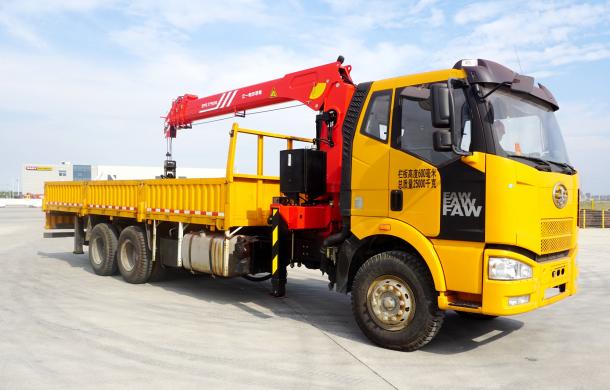

SPS17500 Stiff Boom Crane

8 Ton Stiff Boom Crane
Boom Length: 4.8-13.8m
Max. Lifting Capacity: 8T
Overall Weight: 2.73T

Suitable for working conditions: Transport & Logistics Infrastructure

Online Consulting
Product Features Technical Parameters Feedback

Product Features

Ergonomic Design
● Throughout the design phase SANY PALFINGER follows the general principles of ergonomics to ensure a comfortable and safe crane operation.

Integrated Electric System
● Robust, reliable, and easy-to-maintain design
● Network of modular components connected through standardized interfaces

Advanced Proportional Hydraulic System
● Sensitive controls with accurate positioning for lifting jobs requiring high precision. Stable movement and ability to utilize multiple functions simultaneously.

High Pressure and Return Filter
● All the series are equipped with high-pressure filter as standard configuration. It protects the hydraulic components of the crane and prolongs the service life of the hydraulic system

High Density Paint System
● Demonstrates superior performance
● Long-term UV-resistance
● Attractive aesthetics

Technical Parameters

Length of the Fully Extended Boom 13.8 m
Range of the Boom Lifting Angle 0~75°
Slewing Angle Endless
Length of the Basic Boom 4.8 m
Recommended Volume for the System 45-70 L/min
Operating Mode Lower seat
Outrigger Span 5.6 (m)
Max. Outreach 13.5m
Max. Lifting Height 15.3 m
Rated Lifting Moment 19.8mt
Max. Lifting Capacity 8T
Overall Weight 2.73T
Boom Length 4.8-13.8m
Numbers of the Boom 4
Rated Lifting Weight 8T
