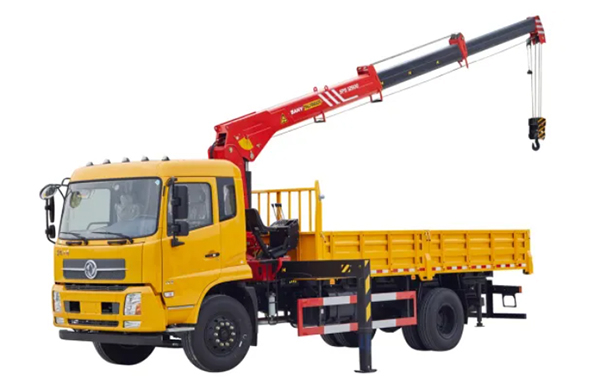

SPS12500 Stiff Boom Crane

5 Ton Stiff Boom Crane
Boom Length: 4.3-11.9m
Max. Lifting Capacity: 5.6T
Overall Weight: 2.37T

Suitable for working conditions: Landscaping Transport & Logistics

Online Consulting
Product Features Technical Parameters Feedback

Product Features

Ergonomic Design
● Throughout the design phase SANY PALFINGER follows the general principles of ergonomics to ensure a comfortable and safe crane operation.

Integrated Electric System
● Robust, reliable, and easy-to-maintain design
● Network of modular components connected through standardized interfaces

Advanced Proportional Hydraulic System
● Sensitive controls with accurate positioning for lifting jobs requiring high precision. Stable movement and ability to utilize multiple functions simultaneously.

High Pressure and Return Filter
● All the series are equipped with high-pressure filter as standard configuration. It protects the hydraulic components of the crane and prolongs the service life of the hydraulic system

High Density Paint System
● Demonstrates superior performance
● Long-term UV-resistance
● Attractive aesthetics

Technical Parameters

Boom Length 4.3-11.9m
Length of the Basic Boom 4.3 m
Length of the Fully Extended Boom 11.9 m
Max. Lifting Capacity 5.6T
Max. Lifting Height 13.6m
Max. Outreach 11.6m
Numbers of the Boom 3 or 4
Operating Mode Lower seat
Outrigger Span 5.1 (m)
Overall Weight 2.37T
Range of the Boom Lifting Angle 0~75°
Rated Lifting Moment 12.5mt
Rated Lifting Weight 5T
Recommended Volume for the System 35-50 L/min
Slewing Angle Endless
